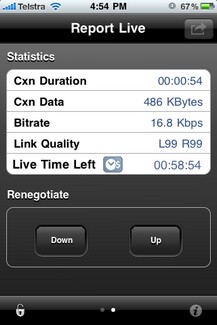

When a connection is live and you are viewing the Report Live screen, swipe to the left twice to view the Statistics screen and view current connection statistics.
In order of viewing from the top of the screen you can see:
| 1. | Cxn Duration: The duration of the current or last connection. |
| 2. | Cxn Data: the amount of data used over the current or last connection. |
| 3. | Bitrate: the bit-rate of an active connection. |
| 4. | Link Quality: the local and remote link qualities of an active connection. |
| 5. | Live Time Left: the amount of live time remaining if Report-IT Live Pro is not purchased. |
Want to Learn More about Tieline Codecs?
To learn more about the audio functions available within the Report-IT application and Tieline codecs, please visit www.tieline.com/support, select the codec that you have installed at the studio and download the user manual for that codec. Online support is also available via support@tieline.com and the Tieline forums at http://forums.tieline.com.
