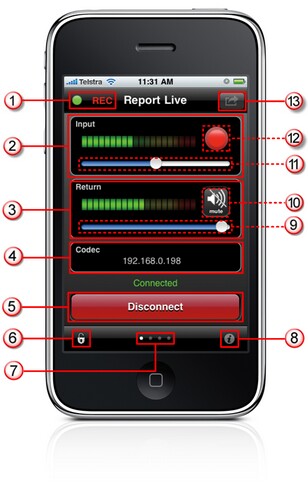

Feature

Description

1

Record/Connected indications

Displays flashing green symbol when connected live (orange symbol while connecting) and REC flashes red when recording

2

Input PPM

Displays microphone input level; keep levels peaking in the green region of the PPM (as displayed). the PPM meters in Report-IT display average power for audio and represent the following:

3

Return PPM

Displays return audio level from the studio codec when connected and monitored input (if enabled); keep levels peaking in the green region of the PPM (as displayed)

4

Codec connection

Displays the address of the codec to which Report-IT is programmed to connect; tap the arrow to select or program a new address

5

Connect/Disconnect button

Tap the Connect button to establish a connection to  the studio codec; when connected, tap the red Disconnect button to disconnect.

6

Screen lock button

Tap to lock screen controls when connected to ensure settings cannot be accidentally adjusted; buttons and sliders are greyed out and disabled when locked

7

Home/Statistics page toggle

Tap to toggle between the Home screen and the Statistics screen to view connection statistics. A swipe gesture left/right can also be used to navigate between the screens.

8

Configuration Information

Tap to open the Configuration screen and adjust Connection and Audio settings

9

Return slider/fader

Slide to adjust return/monitor audio levels

10

Mute button

Tap to mute return audio from the studio codec (turns blue when muted)

11

Input Slider/Fader

Slide to adjust microphone input levels

12

Record Symbol

Indicates a report is either recording or not recording

13

Activity button

Tap to select the activity you want to perform with Report-IT Live; Report Live, Record a Report or Manage Your Reports
