Recordings can be retransmitted to the studio or inserted into live reports using playlists displayed on the Playback Reports screen. (See Add and Remove Reports from Playlists for more info)
| 1. | Tap the Activity  button in the top-right corner of the Home screen and then tap Report Live. |
| 2. | Tap the Connect button on the Home screen to establish a connection to the studio codec (see Getting Started for more connection details). |
| 3. | Swipe your finger to the left to reveal the Playback Reports screen. |
| 4. | Tap the arrow  to select the playlist you want from the default and custom playlists displayed. |
| 5. | Tap the Report Live button in the top-left hand corner of the screen to return to the Playback Reports screen. |
| 6. | Tap a report to select it from the playlist of recordings. |
| 7. | Press the play symbol to play the report. Note: this automatically mutes the iPhone microphone during playback. |
| 8. | Tap Now Playing if you want to adjust the report playback level. |
| 9. | Swipe your finger to the right to return to the Report Live screen at the completion of playback. |
| 10. | Tap the Disconnect button on the Report Live Home screen to end the connection. |
|

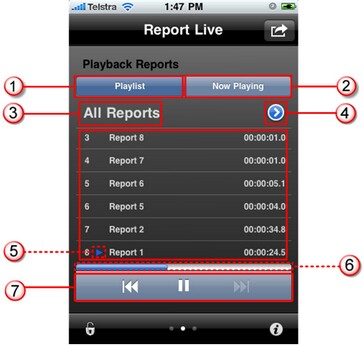

Feature |
Description |
1 |
Playlist button |
Tap to display all reports in the selected playlist |
2 |
Now playing button |
Tap to display the currently selected recording |
3 |
Current playlist |
The name of the currently selected playlist |
4 |
Select playlist arrow |
Press |
5 |
Current report selected |
Indicates the currently selected report |
6 |
Playback indicator |
Elapsed playback indication |
7 |
Playback controls |
Play, pause,and skip report controls |
